Descripción
| Característica | Especificación |
|---|---|

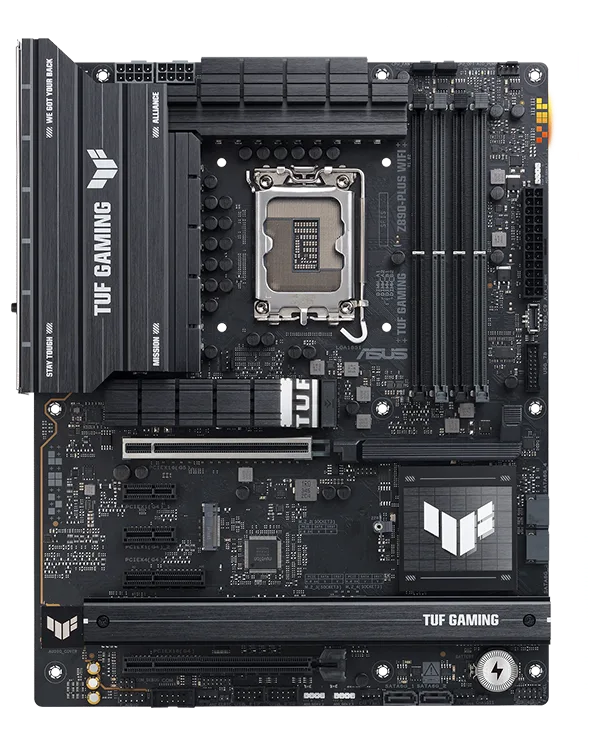

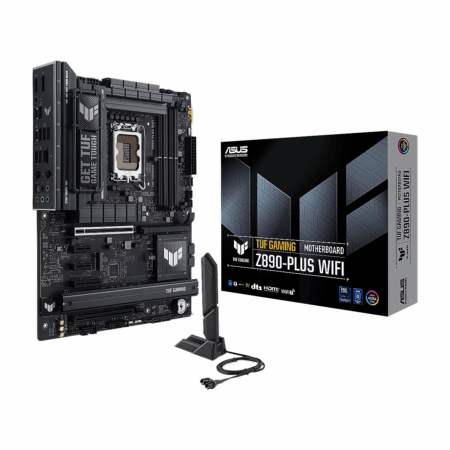

| Modelo | ASUS TUF Gaming Z890-PLUS WIFI |
| Factor de forma | ATX |
| Socket | LGA 1851 |
| Chipset | Intel Z890 |
| Procesadores compatibles | Intel Core Ultra Series 2 |
| Alimentación VRM | 16+1+2+1 fases DrMOS de 80A |
| Memoria RAM | 4 × DDR5 DIMM |
| Capacidad máxima RAM | 256 GB |
| Velocidad máxima RAM | Hasta DDR5-9066+ MT/s (OC) |
| Arquitectura de memoria | Dual Channel |
| Perfiles de memoria | Intel XMP + ASUS AEMP III |
| PCIe principal | 1 × PCIe 5.0 x16 |
| PCIe adicionales | 1 × PCIe 4.0 x16 (x4), 1 × PCIe 4.0 x4, 2 × PCIe 4.0 x1 |
| Ranuras M.2 | 4 × M.2 |
| M.2 principal | PCIe 5.0 x4 |
| M.2 adicionales | 3 × PCIe 4.0 x4 |
| Puertos SATA | 4 × SATA 6 Gb/s |
| RAID | PCIe/SATA RAID 0, 1, 5 y 10 |
| Wi-Fi | Wi-Fi 7 (802.11be) 2×2 |
| Bluetooth | Bluetooth 5.4 |
| Ethernet | Intel 2.5 Gb Ethernet |

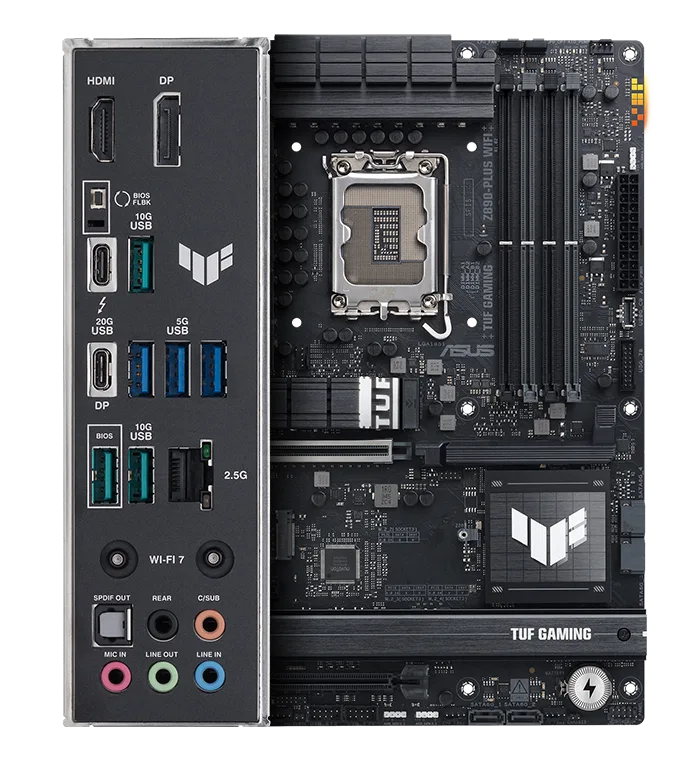

| HDMI | 1 × HDMI 2.1 – hasta 4K 60 Hz |
| DisplayPort | 1 × DisplayPort 1.4 – hasta 4K 60 Hz |
| Thunderbolt | 1 × Thunderbolt 4 USB-C |
| USB-C trasero | 1 × Thunderbolt 4 + 1 × USB-C 20 Gbps |
| USB-A traseros | 6 × USB-A |
| USB traseros totales | 8 puertos |
| USB-C frontal | Header USB-C 20 Gbps |
| Audio | Realtek ALC1220P 7.1 Surround |
| Salidas de audio | 5 × Jack + 1 × S/PDIF óptico |
| Headers ARGB | 3 × Addressable Gen 2 |
| BIOS | UEFI AMI BIOS, 256 Mb |
| BIOS FlashBack | Sí |
| Q-LED | Sí – CPU / DRAM / VGA / Boot |
| M.2 Q-Release / Q-Latch | Sí |
| PCIe Q-Release | Sí |
| I/O Shield | Preinstalado |
| Dimensiones | 30.5 × 24.4 cm |
| Sistema operativo | Windows 11 |
